How to check awning size?
Awning Chart
| Measuring your Van |
||

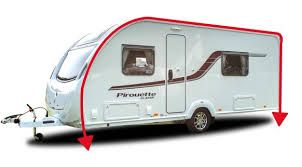

| Your awning measurement or 'A' measurement will be in your hand book for your caravan. If you don't have a hand book then the correct way to ascertain the 'A' measurement is to measure from X to Y, ground to ground, along the caravan channel (as shown by the dotted line on the diagram). Then use our table below to find the right size of awning for you. |
| SIZE |
'A' MEASUREMENT |
SIZE |
'A' MEASUREMENT |
| 10' |
Above 686cm (22' 6") up to 716cm (23'6") |
18' |
Above 930cm (30' 6") up to 960cm (31' 6") |
| 11' |
Above 716cm (23' 6") up to 747cm (24'6") |
19' |
Above 960cm (31' 6") up to 990cm (32' 6") |
| 12' |
Above 747cm (24' 6") up to 777cm (25'6") |
20' |
Above 990cm (32' 6") up to 1020cm (33' 6") |
| 13' |
Above 777cm (25' 6") up to 808cm (26'6") |
21' |
Above 1020cm (33' 6") up to 1050cm (34' 6") |
| 14' |
Above 808cm (26' 6") up to 838cm (27'6") |
22 ' |
Above 1050cm (34' 6'') up to 1080cm (35' 6'') |
| 15' |
Above 838cm (27' 6") up to 869cm (28'6") |
23' |
Above 1080cm (35' 6'') up to 1115cm (36' 8'') |
| 16' |
Above 869cm (28' 6") up to 899cm (29' 6") |
24 ' |
Above 1115cm (36' 8'') up to 1150cm (37' 10'') |
| 17' |
Above 899cm (29' 6") up to 930cm (30' 6") |
25 ' |
Above 1150cm ( 37' 10'') up to 1185cm (39' 0'') |
| Measuring for a Porch Awning |
|
| To measure your van for the correct height of porch awning, measure from the awning channel above the door down to the ground. Our porch awnings come in three different heights, 7' 0", 7' 6", 8' 0". Choose the height nearest to your measurement. |
